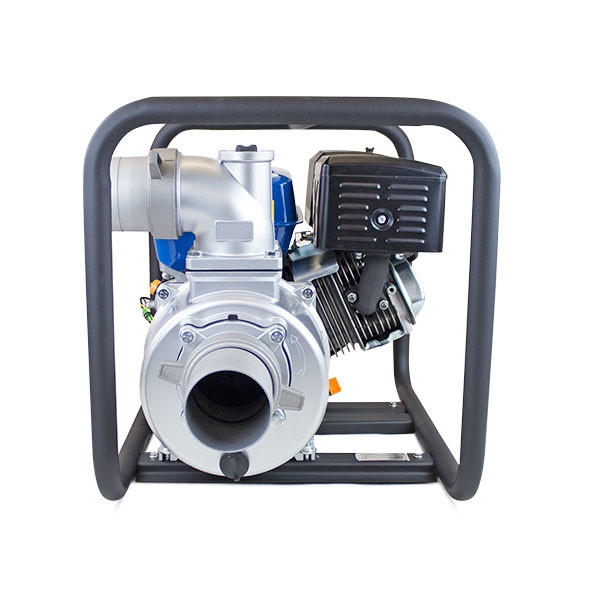

Professional Petrol-Powered Clean Water Pump
The HY100 is a petrol open-frame recoil-start water pump from Hyundai, able to handle a range of clean water pumping tasks in your business.
Powerful Hyundai Engine
Powered by a 389cc 4-stroke, single-cylinder Hyundai IC390 engine, the HY100 has an impressive pumping capacity of 75,000 litres per hour - a huge 1,250L of fluid a minute! This makes it a great option for preventing or minimising the damage that flooding can cause.
Recoil-Start Water Pump
This self-priming centrifugal water pump features easy recoil pull-starting for a reliable start each and every time.
20m Total Lift
With a maximum suction head / lift of 7 metres and 4" / 100mm inlet and outlet, the HY100 has a total head / lift of 20m which makes it the ideal water pump for a wide variety of clean water pumping applications.
Fresh Water Pump
Designed to be used primarily in fresh water, the HY100 is able to handle particles, such as gravel or other solids, up to 9mm in diameter.
Suitable For a Range of Purposes
This powerful water pump is suitable for a range of purposes, including as a hot tub pump, swimming pool pump or to clear garden ponds, puddles or bodies of water built up due to rain.
Portable Water Pump
Weighing just 31kg, the relatively lightweight Hyundai HY100 water pump is a highly portable machine and has been built with transportation and storage in mind. Its solid open-frame design, which serves to both protect the water pump from any knocks and bumps, also doubles up as handles which makes for easy transportation.
Extra Large Fuel Tank
Equipped with a 6.5L fuel tank which provides a long running time, the HY100 will see you from start to finish on even the largest of jobs and will save you having to keep stopping what you're doing to fill it back up with fuel.
High-Quality Components
This water pump features a high-quality build, including the pump itself which features aluminium housing with a cast iron impeller for added longevity.
Petrol Water Pump
The benefit of being powered by petrol, as opposed to electric water pumps, is that this machine can be used away from a power source which is especially beneficial if being used in flood conditions as there may not be any power available.
3 Year Warranty
This open-frame water pump comes with our 3 year Hyundai platinum warranty for added peace of mind.
In The Box
- HY100 Petrol Water Pump
- Filter
- Spark Plug
- Spanner
- User Manual
Specification
Model |
HY100 |
Start Method |
Recoil |
Pump Type |
Aluminium Housing |
Water Type |
Clean |
Fuel |
Petrol |
Fuel Capacity |
6.5 L |
Impeller Type |
Cast Iron
|
Drive Type |
Direct Drive |
Engine Oil |
5W-30 |
Engine Oil Capacity |
1.1 L
|
Max. Flow Rate |
1250 L/min |
Max. Flow Rate |
75,000 L/hr
|
Inlet |
4" / 100 mm |
Outlet |
4" / 100 mm |
Max. Solids |
9 mm
|
Suction Lift |
7 m
|
Total Lift |
20 m
|
Engine Model |
IC390
|
Engine Type |
Hyundai IC390
|
Engine Size |
389 cc
|
Rated Power |
8.6 kW
|
Max. Power |
9 kW
|
Maximum Power @ 3000 RPM |
10.7 HP / 8 kW
|
Maximum Power @ 3600 RPM |
12 HP / 9 kW
|
Speed |
3600 RPM |
Noise Level |
104 dB |
Gross Weight |
-
|
Net Weight |
31 kg |
Length |
450 mm |
Width |
420 mm |
Height |
480 mm |
Fuel / Power Source |
Petrol |
Product Type |
Water Pump |
Domestic Warranty |
3 Years |
Commercial Warranty |
1 Year |
Warranty

All Hyundai garden machinery is covered by a Hyundai 3 year platinum warranty for domestic use (commercial terms differ - please see warranty terms).
NOTE: Genpower Limited are the importers & distributers of HYUNDAI POWER PRODUCTS (UK)
3 YEAR WARRANTY for all portable power products except:
2 YEAR WARRANTY for Air Compressors, Welders, Robotic Lawnmowers, Power Stations, Jump Starters
2 YEAR WARRANTY for all 1500rpm Diesel Generators, subject to service records and maximum 500h/year.
1 YEAR WARRANTY on all 3000rpm air-cooled diesel products, maximum 1000h, and hot pressure washers.
All inverter generators, and petrol open framed generators have a 3 year warranty, but also limited to a maximum of 1,000 hours use - whichever occurs first.
Products ‘Powered by Hyundai engine’, such as the P1 Power Equipment series, have a 2 year Warranty.
Hyundai portable power products are guaranteed to be free from defects in both material and workmanship for the length of the warranty period from the original date of purchase. This “Warranty” ensures that any defective part
will be repaired or replaced at the discretion of Genpower Ltd.
To use the warranty, we require, model number, serial number, proof of purchase and service records if applicable.
